Create pipeline

That project will emphasize the different steps to build a basic python app pipeline. We will self-host every product that we are going to use in this tutorial, which will allow us to understand how the different part works and how to use them.

To build that project we will follow these steps



  • create a GitLab server
  • create a runner to run the pipeline
  • create a basic Django app
  • create a sonarqube server
  • create a docker server to deploy our application


 Gitlab

GitLab CI/CD is a tool built into GitLab for software development through the following:

• Continuous Integration (CI)

• Continuous Delivery (CD)

 • Continuous Deployment (CD)

GitLab CI/CD is configured by a file called .gitlab-ci.yml, placed at the repository’s root. This file creates a pipeline, which runs for changes to the code in the repository. Pipelines consist of one or more stages that run in a particular order and can each contain one or more jobs that run in parallel. These jobs (or scripts) get executed by the GitLab Runner agent.

You can use GitLab as a service by creating an account on the gitlab.com website or you can self-host a GitLab server on your own and manage everything yourself.

We are going to take the second path and install a GitLab server.

- Creating a GitLab server

We are installing GitLab on a ubuntu virtual machine


apt install curl -y
sudo apt-get update
sudo apt-get install -y curl openssh-server ca-certificates tzdata perl
apt update -y
gpg_key_url="https://packages.gitlab.com/gitlab/gitlab-ce/gpgkey"
curl -fsSL $gpg_key_url| sudo gpg --dearmor -o /etc/apt/trusted.gpg.d/gitlab.gpg

sudo tee /etc/apt/sources.list.d/gitlab_gitlab-ce.list<<EOF
deb https://packages.gitlab.com/gitlab/gitlab-ce/ubuntu/ focal main
deb-src https://packages.gitlab.com/gitlab/gitlab-ce/ubuntu/ focal main
EOF

sudo apt update

sudo apt install gitlab-ce

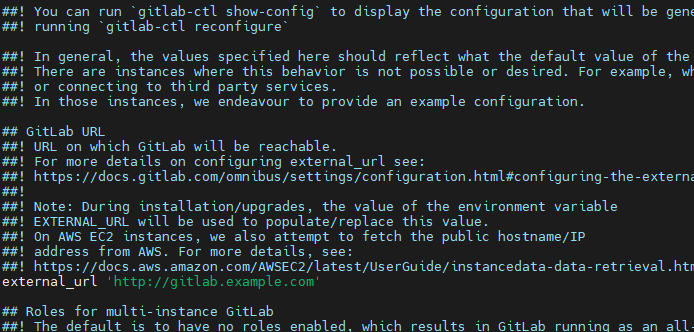

You have to set-up an externat url for your gitlab server, if you are building the la on a virtual machine on your computer, you can just put the virtual machine ip address

sudo nano /etc/gitlab/gitlab.rb


sudo gitlab-ctl reconfigure


sudo gitlab-ctl start



Get your root password :  cat /etc/gitlab/initial_root_password

- Create the runner

  1. Install the official Gitlab repository
     curl -L "https://packages.gitlab.com/install/official GitLab repository: repositories/runner/gitlab-runner/script.deb.sh" | sudo bash

      2. Install the latest version of gitlab runner
          sudo apt-get install gitlab-runner

      3. To install a specific version of gitlab
          apt-cache madison gitlab-runner
          sudo apt-get install gitlab-runner=10.0.0


Getting the app

We are going to use a basic Django app for this demonstration. We will not have to create the app, you will just have to download it from the public GitHub repo :


This app is a tiny example of a store webpage, we include some tests for our methods. You can clone the repository on your machine and push it on your own repo. Run the command

git clone https://gitlab.com/emmanuelstevensc/django-project.git

It will clone the project on your computer. You need to have git installed before using this command.

when you get to the project root folder nad run the command :

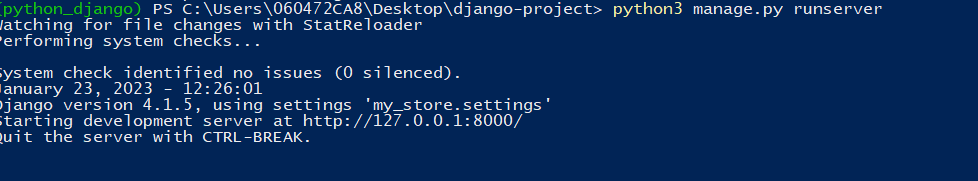

python3 manage.py runserver

you should have the screens



you can get access to the application by going to the server address on port 8000

http://localhost:8000/montest





Running our first pipeline


Now that we have test the application, we can push it to our gitlab repository with the commands

git add .
git commit -m "our first commit"
git push -uf origin main


 To register the runner paste this command in your terminal on the runner server

sudo gitlab-runner register -n \
  --url https://YOUR_GITLAB_SERVER/ \
  --registration-token REGISTRATION_TOKEN \
  --executor shell \
  --description "My Runner"

you can find the registration token on your project page on the GitLab server



after following these steps, you will have a functional GitLab running and a runner that allow you to run your pipeline


Now that we finish the set-up, you can go on CI/CD, click on pipeline and run the tour pipeline

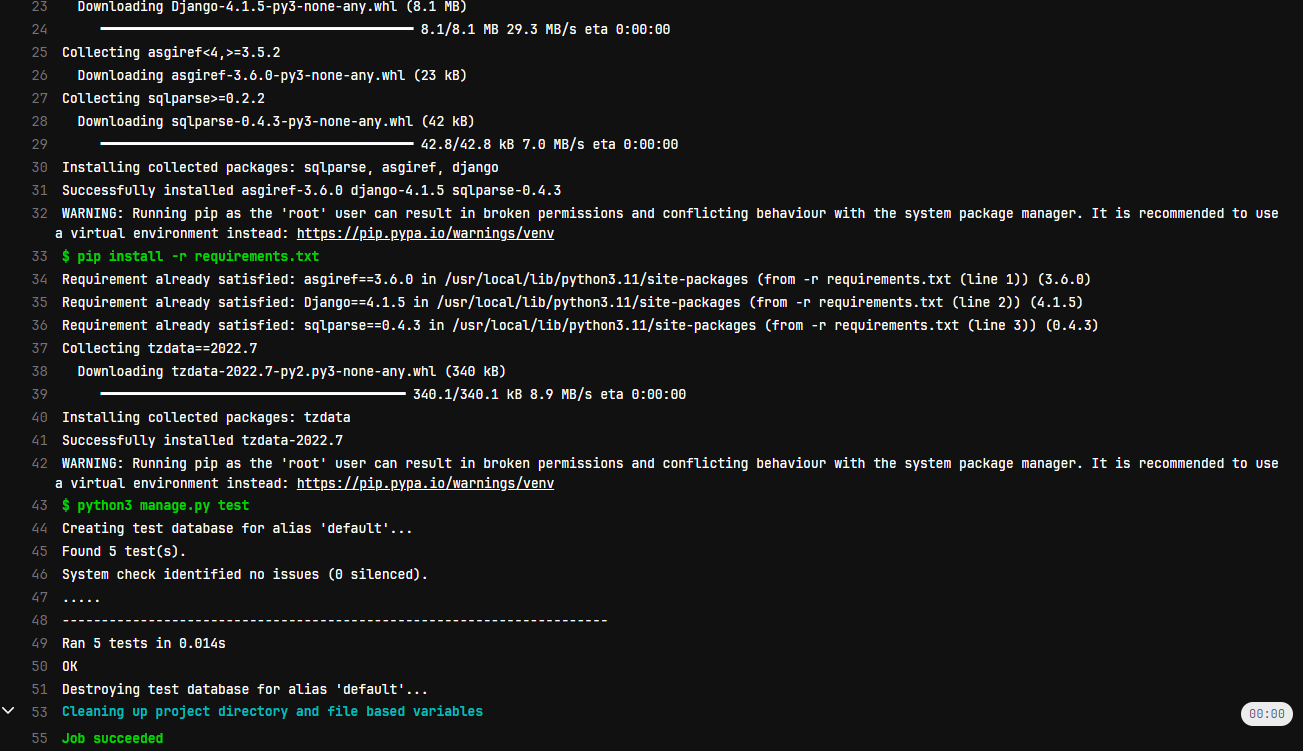

If you click on passed you will see the logs of the jobs that you just run
